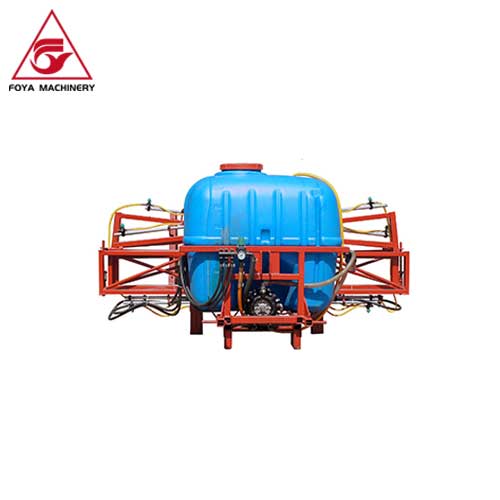

Tractor Mounted Boom Sprayer
The tractor mounted boom sprayer is used with a four-wheel tractor and is suitable for spraying crops of large plain areas such as wheat, corn, rice, soybeans and other crops.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
The tractor mounted boom sprayer is a high-efficiency spraying machine connected to the rear three-point hitch of the tractor. Its spray boom height is adjustable and it can be folded. The sprayer is suitable for controlling various pests and diseases of crops, spraying foliar fertilizers and herbicides. The sprayer pipeline is made of special anti-corrosion material and has excellent corrosion resistance. It adopts a diaphragm pump, which has stable working pressure and uniform spray. At present the machine is mainly exported to Africa, America, Southeast Asia and other regions.
1. Both the tank capacity and the boom length can be customized to meet different planting patterns.
2. Strong pressure, uniform atomization and long range.
3.The tractor mounted boom sprayer equips spray distributor, and the atomization effect is better.
4. Large tank capacity, long spraying time and high operating efficiency.
5. The spraying pipe system has multi-stage filtration to ensure that the nozzle will not be blocked during operation.
6. Multi-cylinder diaphragm pump with large displacement is adopted to ensure the reliable operation.
| Model | >CRY300-6 | CRY500-8 | CRY800-10 | CRY1000-12 |
| Matched power (hp) | >24 | >35 | >45 | >60 |
| Tank capacity(L) | 300 | 500 | 800 | 1000 |
| Spraying swath(m) | 6 | 8 | 10 | 12 |
| Nozzle quantity | 12 | 16 | 20 | 24 |
| Nozzle distance (cm) | 50 | |||
| Filter class | 2 | 3 | 3 | 3 |
| Folding number | 3 or 5 | 5 | 5 | 5 |

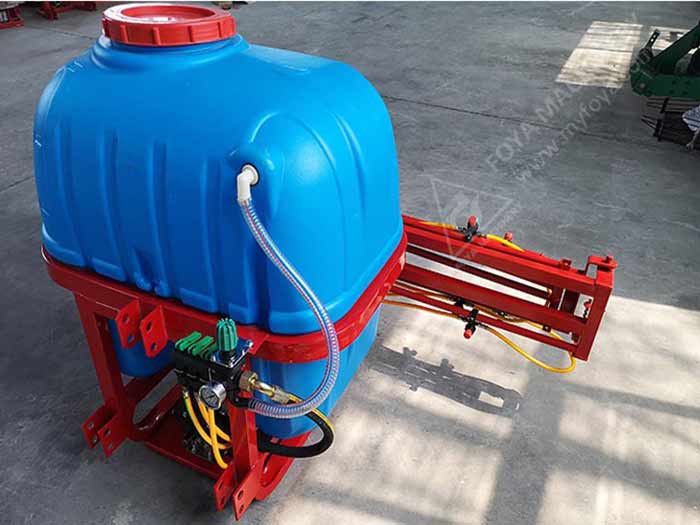

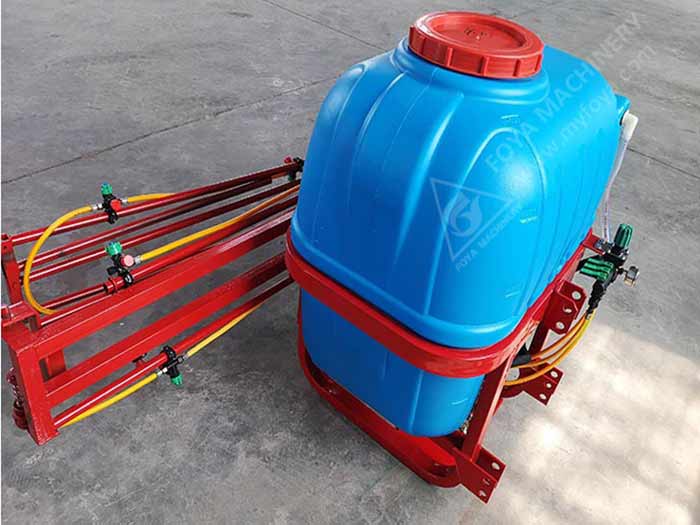

Detailed Pictures

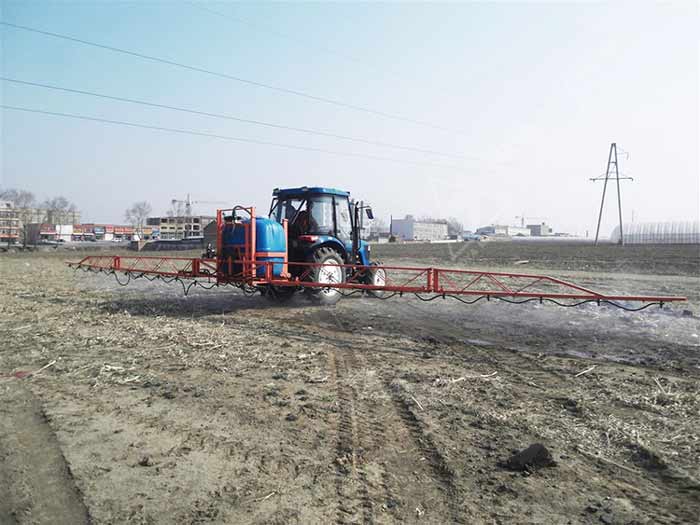

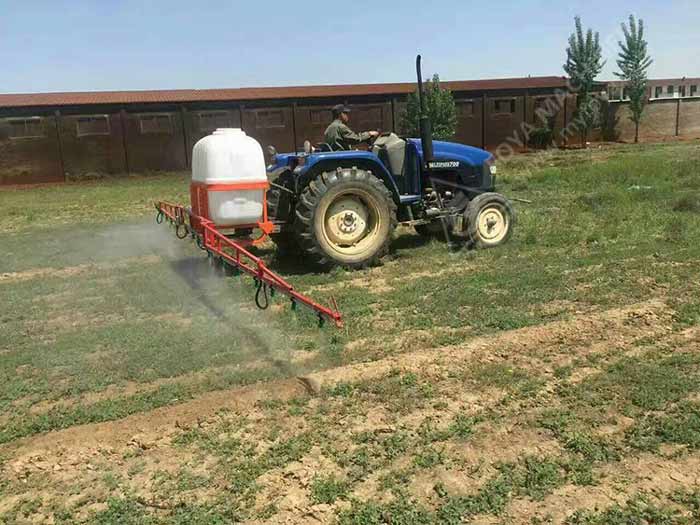

Working Sites
Contact us to get more videos.
