5 Tractor Mouted Orchard Sprayer
The tractor-mounted orchard sprayer is mainly used for chemical weeding, foliar fertilization, growth regulators spraying and pest control. It is a multifunctional machine of light and flexible operation, high efficiency, and water and pesticide saving.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
The orchard sprayer is connected to the rear suspension of the tractor, and the pump and fan are driven to work through the PTO shaft. The simple suspension mode, convenient operation, strong trafficability, and a driver can operate it independently. The machine has the characteristics of uniform fogging, high production efficiency, strong penetration, low labor intensity, large coverage of liquid medicine and good adhesion.
1. 360-degree spray, each nozzle can be closed separately, the strong wind force can make the blade evenly and fully spray and the operation efficiency is high.
2. Equipped with two-stage filter, the nozzles do not block, and uniform atomizing, so that the insect and disease prevention can achieve the ideal effect.
3. There are circular fans and tower fans. The appropriate fan type can be selected according to the height and density of the fruit trees.
4. The pump, fan blades and nozzles are all made of high-quality materials, which are corrosion resistant and have a long service life.
5. Equipped with high-grade combination valve, which integrates pressure regulation, segmented control and filtration, which makes the orchard sprayer easy to operate.
| Model | SX-350 | SX-400 | SXT-500 | SXT-600 |
| Volume (L) | 350 | 400 | 500 | 600 |
| Matched power (hp) | 30-50 | 30-50 | 30-100 | 30-100 |
| Pump | plunger pump | diaphragm pump | diaphragm pump | diaphragm pump |
| Working width (m) | 5-7 | 6-8 | 10-15 | 10-15 |
| Weight (kg) | 130 | 190 | 150 | 165 |
| Dimension (mm) | 1130*1150*1060 | 1010*1060*1420 | 1100*1300*1600 | 1200*1300*1600 |

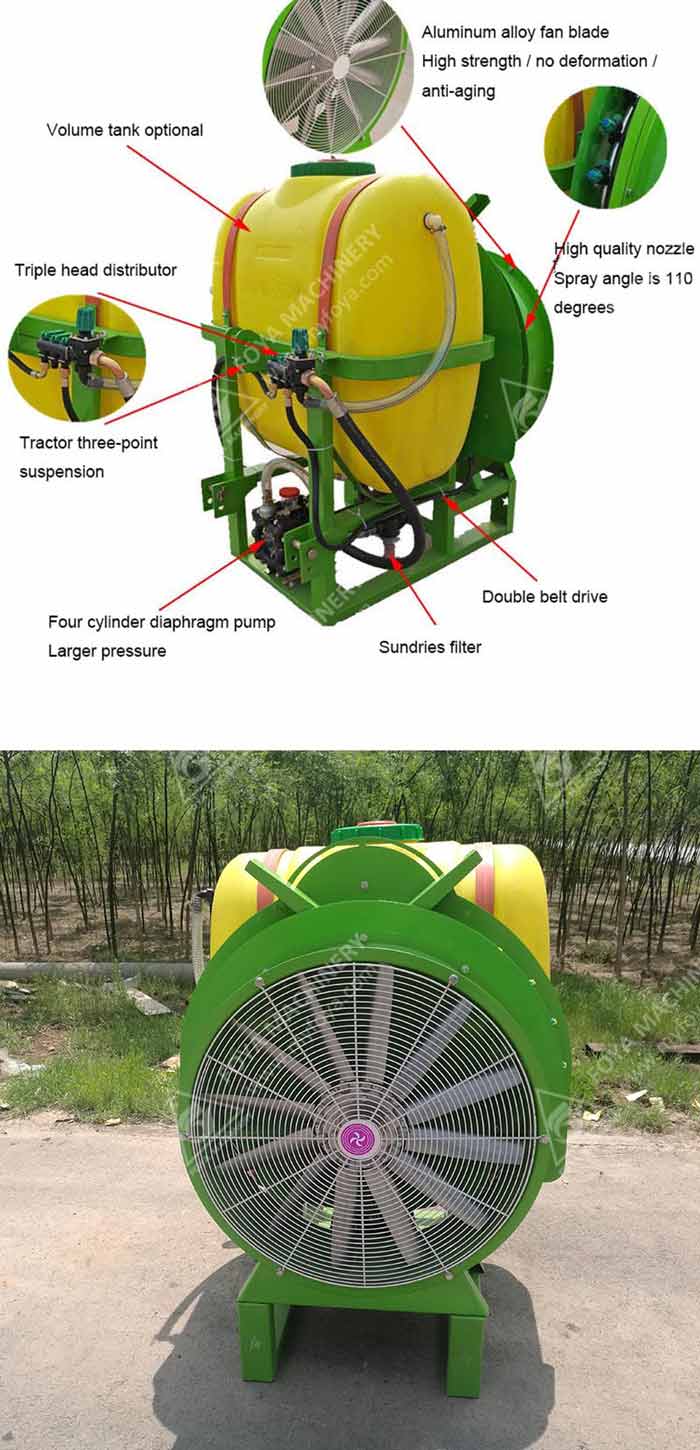

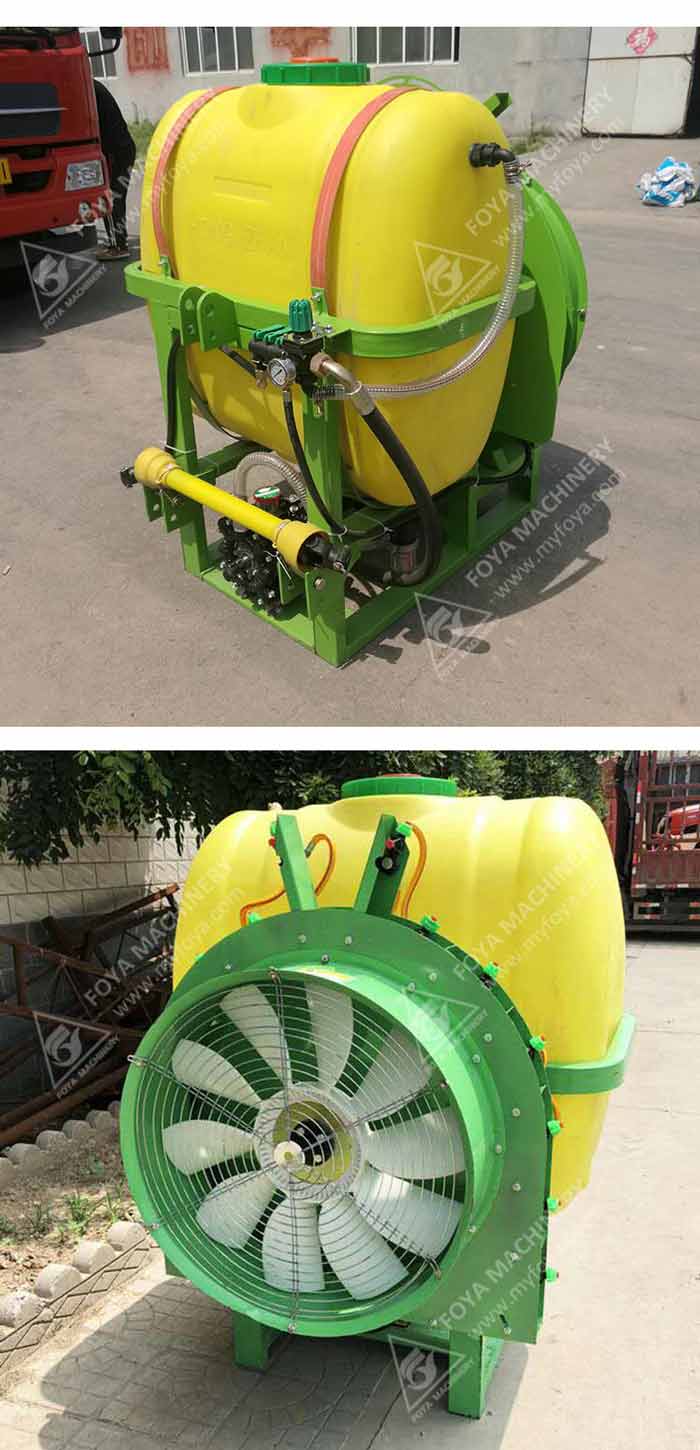

Detailed Pictures

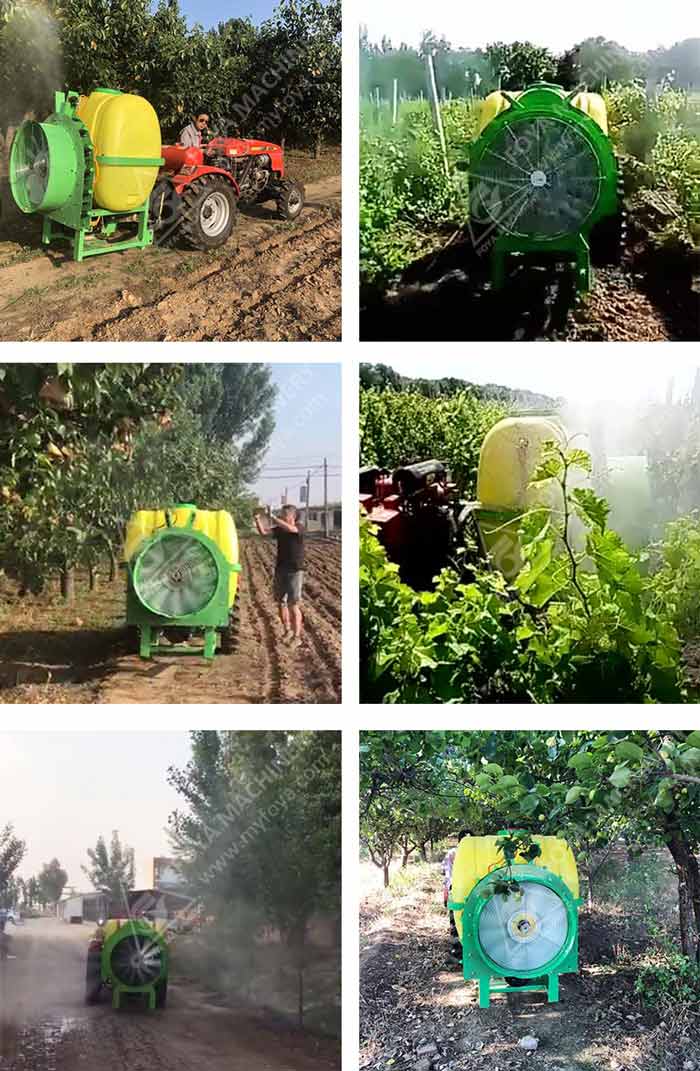

Working Sites
